Plein système de caméra d'Endoscope de HD

FHD Medical Endoscope Camera System with SONY CMOS Sensor Built-in Video Recording and One-touch Freeze

FHD Medical Endoscope Camera System with SONY CMOS Sensor Built-in Video Recording and One-touch Freeze

Nom De Marque:	TUYOU
Numéro De Modèle:	La télévision-LSH101B
Nombre De Pièces:	1 ensemble
Délai De Livraison:	jours 3-15work
Conditions De Paiement:	T/T, Union occidentale

Informations détaillées

Description de produit

Informations détaillées

Lieu d'origine:

Chine

Certification:

CE FDA ISO13485

Taper:

Endoscope

Classification des instruments:

Classe I

Nom de marque:

TUYOU

Numéro de modèle:

La télévision-LSH101B

Propriétés:

Système d'image pour médical

Nom du produit:

Caméra médicale de l'endoscope

Capteur d'image:

1/2,8 "CMOS Sony

Mots-clés:

Équipement médical

Résolution:

Détails d'emballage:

Taille de la boîte: 48,5 * 48 * 26 "Poids: 11 kg un PCS

Capacité d'approvisionnement:

2000 par mois

Mettre en évidence:

SONY CMOS Sensor Endoscope Camera System

Built-in Video Recording Medical Endoscope Camera

One-touch Freeze HD Endoscope Camera

Description de produit

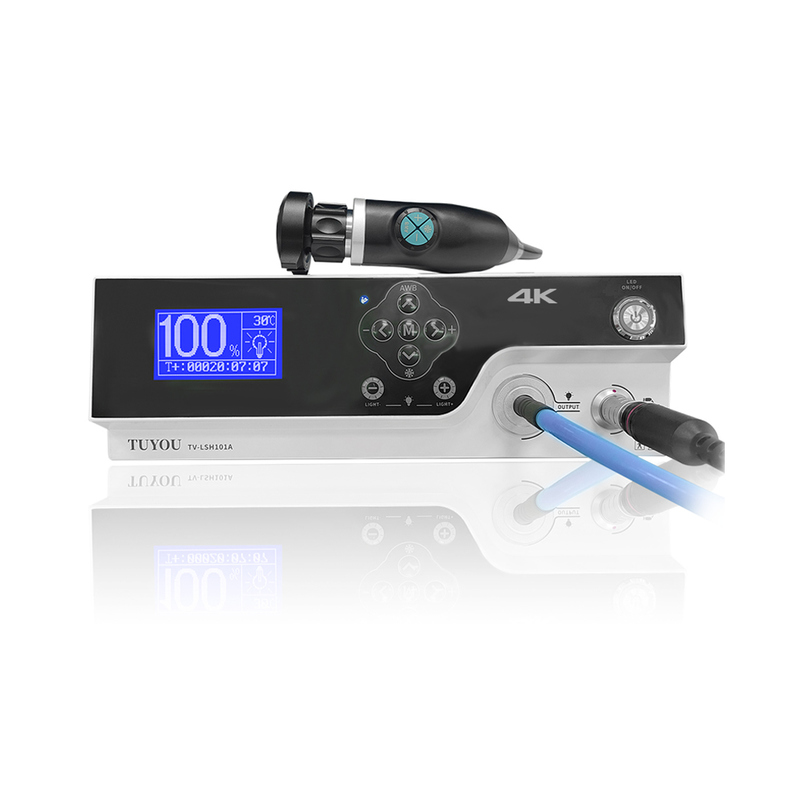

TV-LSH101B FHD medical endoscope light source camera for Laparoscope/ENT/Arthroscope/Cystoscope

Advanced Endoscopic Imaging System

Our advanced endoscopic imaging system integrates optical, electronic, and precision mechanical technologies, seamlessly compatible with various endoscopes including otoscopes, sinusoscopes, laryngoscopes, laparoscopes, arthroscopes, and cystoscopes. Supporting clinical scenarios from ENT diagnosis to urological and gynecological interventions, this system delivers full HD and 4K resolution images with exceptional clarity, color accuracy, and detail reproduction for precise diagnosis and minimally invasive surgery. Designed for portability and intelligent operation, select models feature anti-interference capabilities to enhance surgical efficiency and patient safety.

Product Specifications

System Parameters
Item Number	TV-LSH101B
Input Interface	FHD

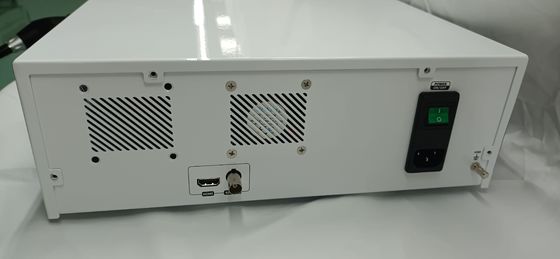

Output Interface	HDMI/SDI
Keyboard Control	Via RX/TX control board menu and shortcuts
Power	AC 110V~240V
Shortcut Functions	Freeze/White Balance/Video/Photo/Digital Zoom
SNR	<45dB
Operating Environment	-10℃~60℃
Product Dimensions	336mm(L) × 330mm(W) × 116mm(H)
Net Weight	3.9kg
Camera Parameters
Image Sensor	1/1.8-inch CMOS
Effective Pixels	3864(H) × 2192(V) ≈8.46 million pixels
Resolution	SDI 4K
D-ZOOM	0-8x
Brightness	1-30 steps
Lens Modes	Transforaminal Endoscope/Fiberscope/Arthroscope/Cystoscope/Hysteroscope/Laparoscope/ENT Scope
Languages	Chinese, English, Japanese, Korean and more
Operating Environment	-30℃~60℃
Power (Max)	DC12V±10% <1.7W
Operating Current	250mA±10mA

TV-LSH101B FHD medical endoscope light source camera for Laparoscope/ENT/Arthroscope/Cystoscope

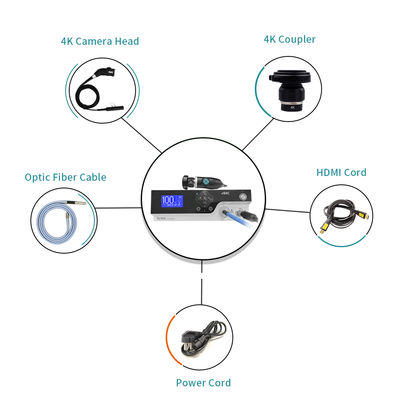

Product Components

The endoscopic imaging system consists of camera control system, handheld camera, and optical adapter (recommended to use with optical endoscope).

Key Features

Built-in video recording system
Dual USB ports for full HD video storage and external display connection
One-touch freeze and white balance
One-touch photo/video capture

Packing & Delivery

推荐产品

适用于耳鼻喉科 TU-D1600T 1080P 内窥镜摄像机,适用于耳鼻喉科,价格低廉,可分割 4 帧 0

适用于耳鼻喉科 TU-D1600T 1080P 内窥镜摄像机,适用于耳鼻喉科,价格低廉,可分割 4 帧 1

适用于耳鼻喉科 TU-D1600T 1080P 内窥镜摄像机,适用于耳鼻喉科,价格低廉,可分为 4 帧 2

适用于耳鼻喉科 TU-D1600T 1080P 内窥镜摄像机,适用于耳鼻喉科,价格低廉,可分为 4 帧 3

适用于耳鼻喉科 TU-D1600T 1080P 内窥镜摄像机,价格低廉,可分为 4 帧 4

适用于耳鼻喉科 TU-D1600T 1080P 内窥镜摄像机,价格低廉,可分为 4 帧 5

Frequently Asked Questions

Q: Are you a factory or trading company?

A: We are a Chinese medical imaging equipment manufacturer. All products are produced by our workers, with 4 production lines and a dedicated R&D team.

Q: Where are you located?

A: Our address is Building 3, Nantaiyang Yunchuang Valley, Fenghuang District, Shenzhen, Guangdong, China. You're welcome to visit our factory.

Q: Do you accept OEM?

A: Yes, we provide "TUYOU" brand products. We also offer OEM services if required.

Q: What is your delivery time?

A: 7 working days after payment; samples are ready.

Q: What is the warranty?

A: 2 years free warranty. During this period, we will repair and replace faulty components free of charge.

Q: What are your payment terms?

A: We accept T/T bank transfer, Alibaba Trade Assurance, Western Union, MoneyGram, PayPal, L/C, cash, etc.
