TUYOU TU-D90TA 4K Endoscope Camera with 7-inch Touch Display Dual USB Ports One-touch Freeze and White Balance for Medical Imaging

TUYOU TU-D90TA 4K Endoscope Camera with 7-inch Touch Display Dual USB Ports One-touch Freeze and White Balance for Medical Imaging

Nom De Marque:	TUYOU
Numéro De Modèle:	TU-D90TA
Nombre De Pièces:	1 set
Délai De Livraison:	jours 3-15work
Conditions De Paiement:	T / T, Western Union

Informations détaillées

Description de produit

Informations détaillées

Lieu d'origine:

CHINE

Certification:

CE FDA ISO13485

Taper:

Endoscope

Classification des instruments:

Classe I

Nom de marque:

TUYOU

Numéro de modèle:

TU-D90TA

Propriétés:

Système d'image pour médical

Nom de produit:

Caméra médicale de l'endoscope

Capteur d'image:

1/2,8 "CMOS Sony

Mots clés:

Équipement médical

Résolution:

Taille:

Écran tactile 7 pouces

Détails d'emballage:

Taille de la boîte: 48,5 * 48 * 26 "Poids: 11 kg un PCS

Capacité d'approvisionnement:

2000 par mois

Mettre en évidence:

Dual USB Ports 4K Endoscope Camera

One-touch Freeze Medical Endoscope Camera

One-touch White Balance Endoscopic Imaging System

Description de produit

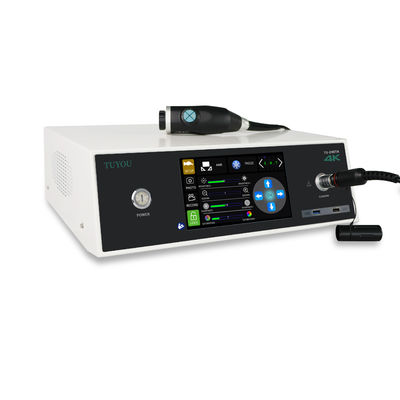

TUYOU TU-D90TA 4K Endoscopic Camera with 7 inch Touch Display and Recorder for Laparoscopy

Advanced Endoscopic Imaging System

Our advanced endoscopic imaging system integrates optical, electronic, and precision mechanical technologies, seamlessly compatible with various endoscopes including otoscopes, sinusoscopes, laryngoscopes, laparoscopes, arthroscopes, and cystoscopes. Supporting clinical scenarios from ENT diagnosis to urological and gynecological interventions, this system delivers full HD and 4K resolution images with exceptional clarity, color accuracy, and detail reproduction for precise diagnosis and minimally invasive surgery. Designed for portability and intelligent operation, select models feature anti-interference capabilities to enhance surgical efficiency and patient safety.

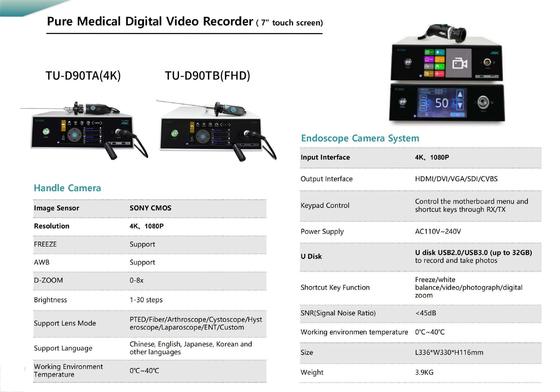

Product Specifications

System Parameters
Item Number	TU-D90TA
Input Interface	4K

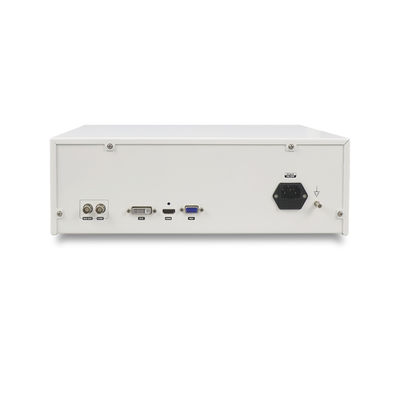

Output Interface	HDMI/SDI/CVBS/DVI/VGA
Keyboard Control	Via RX/TX control board menu and shortcuts
Power	AC 110V~240V
USB Port	USB2.0/USB3.0 (max 32GB support) for recording/photos
Shortcut Functions	Freeze/White Balance/Video/Photo/Digital Zoom
SNR	<45dB
Operating Environment	-10℃~60℃
Product Dimensions	336mm(L) × 330mm(W) × 116mm(H)
Net Weight	3.9kg
Camera Parameters
Image Sensor	1/1.8-inch CMOS
Effective Pixels	3864(H) × 2192(V) ≈8.46 million pixels
Resolution	SDI 4K
D-ZOOM	0-8x
Brightness	1-30 steps
Lens Modes	Transforaminal Endoscope/Fiberscope/Arthroscope/Cystoscope/Hysteroscope/Laparoscope/ENT Scope
Languages	Chinese, English, Japanese, Korean and more
Operating Environment	-30℃~60℃
Power (Max)	DC12V±10% <1.7W
Operating Current	250mA±10mA

4K Integrated ENT/Laparoscopic Medical Endoscope Camera for Doctors and Veterinarians

Product Components

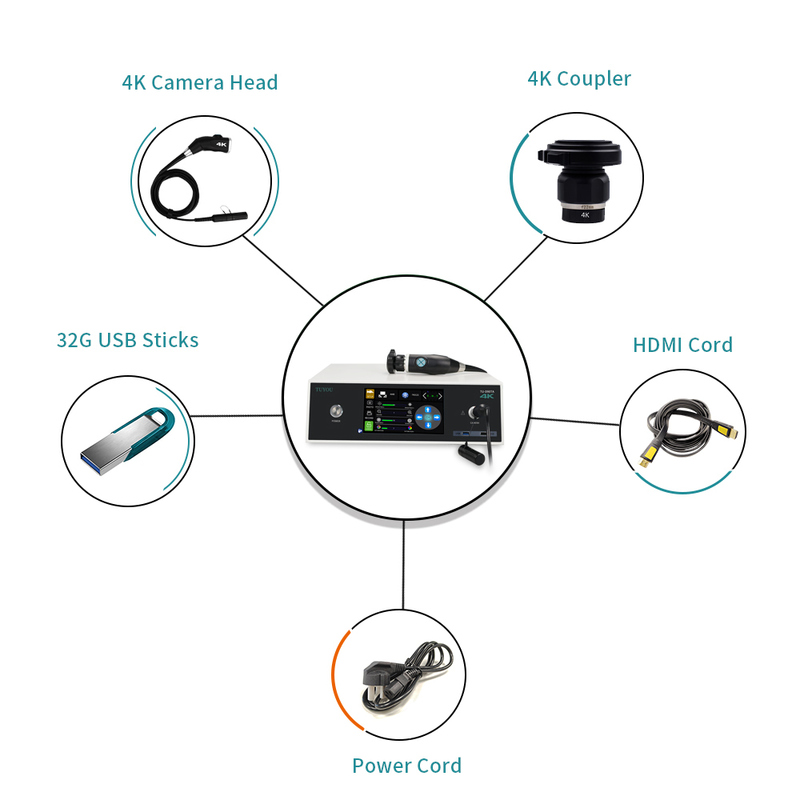

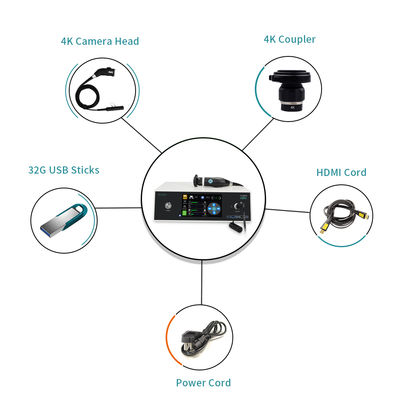

The endoscopic imaging system consists of camera control system, handheld camera, and optical adapter (recommended to use with optical endoscope).

Key Features

Built-in video recording system
7-inch display for real-time viewing,touch screen
Dual USB ports for full HD video storage and external display connection
One-touch freeze and white balance
One-touch photo/video capture

Packing & Delivery

推荐产品

适用于耳鼻喉科 TU-D1600T 1080P 内窥镜摄像机,适用于耳鼻喉科,价格低廉,可分割 4 帧 0

适用于耳鼻喉科 TU-D1600T 1080P 内窥镜摄像机,适用于耳鼻喉科,价格低廉,可分割 4 帧 1

适用于耳鼻喉科 TU-D1600T 1080P 内窥镜摄像机,适用于耳鼻喉科,价格低廉,可分为 4 帧 2

适用于耳鼻喉科 TU-D1600T 1080P 内窥镜摄像机,适用于耳鼻喉科,价格低廉,可分为 4 帧 3

适用于耳鼻喉科 TU-D1600T 1080P 内窥镜摄像机,价格低廉,可分为 4 帧 4

适用于耳鼻喉科 TU-D1600T 1080P 内窥镜摄像机,价格低廉,可分为 4 帧 5

Frequently Asked Questions

Q: Are you a factory or trading company?

A: We are a Chinese medical imaging equipment manufacturer. All products are produced by our workers, with 4 production lines and a dedicated R&D team.

Q: Where are you located?

A: Our address is Building 3, Nantaiyang Yunchuang Valley, Fenghuang District, Shenzhen, Guangdong, China. You're welcome to visit our factory.

Q: Do you accept OEM?

A: Yes, we provide "TUYOU" brand products. We also offer OEM services if required.

Q: What is your delivery time?

A: 7 working days after payment; samples are ready.

Q: What is the warranty?

A: 2 years free warranty. During this period, we will repair and replace faulty components free of charge.

Q: What are your payment terms?

A: We accept T/T bank transfer, Alibaba Trade Assurance, Western Union, MoneyGram, PayPal, L/C, cash, etc.
