Caméra médicale d'Endoscope
Created with Pixso. 7 Inch Touch Screen 1080P Medical Endoscope Camera with SONY CMOS

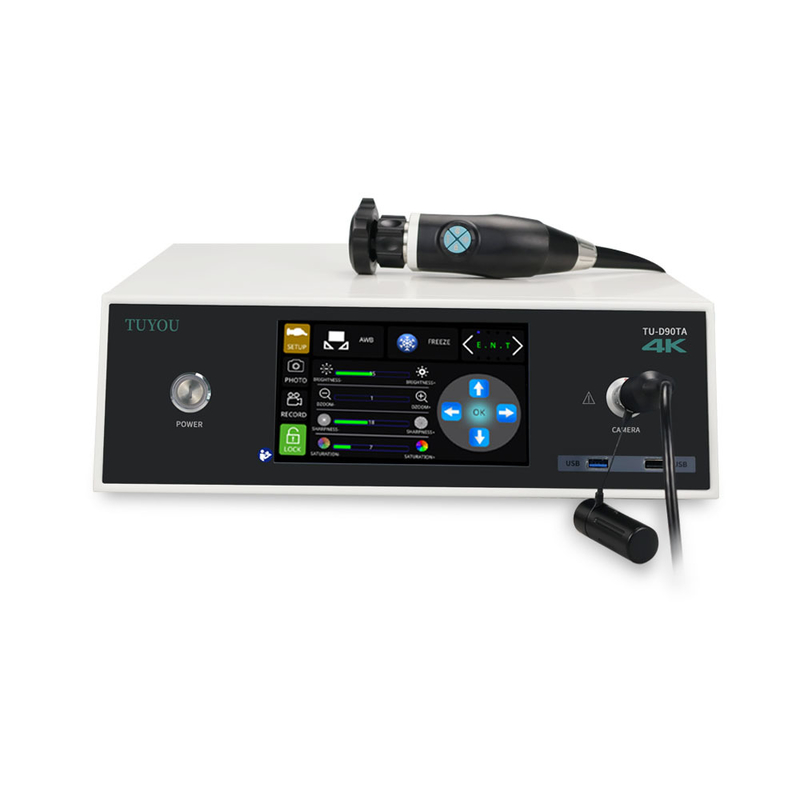

7 Inch Touch Screen 1080P Medical Endoscope Camera with SONY CMOS

Nom De Marque: TUYOU
Numéro De Modèle: TU-D90TB
Nombre De Pièces: 1
Délai De Livraison: 3-15 jours
Conditions De Paiement: T / T, Western Union
Informations détaillées
Lieu d'origine:
Chine Shenzhen
Certification:
CE FDA ISO13485
Afficher:
Écran tactile de 7 pouces
Matériel:
Métal, plastique
Capteur:
1/2,8 "CMOS Sony
Pays d'origine:
Chine
Propriétés:
Système d'image médicale
Mots clés:
Endoscope médical
Fonction de la clé de raccourci:
blocage/zoom numérique/équilibre du blanc
Certification de qualité:
CE, ISO13485, FDA
Résolution:
1080p
Détails d'emballage:
Taille de la boîte: 48,5 * 47 * 25,5 "Poids: 11kg
Capacité d'approvisionnement:
2000 un mois
Mettre en évidence:

7 inch medical endoscope camera

,

1080P endoscope camera with SONY CMOS

,

touch screen medical endoscope camera

Description de produit
Product Description
Introducing Our Advanced Endoscope Imaging System

Our advanced endoscopic imaging systems integrate optics, electronics, and precision mechanics, seamlessly integrating with various endoscopes (such as otoscopes, sinusoscopes, laryngoscopes, laparoscopes, arthroscopes, and cystoscopes) to support a wide range of clinical scenarios, from ENT diagnostics to urology and gynecological interventions. Combined with medical-grade display technology, they deliver images in Full HD and even 4K resolution, ensuring exceptional clarity, color reproduction, and detail, providing reliable support for precise diagnosis and minimally invasive surgery. Designed for portability and intelligent operation, some models support touch control and anti-interference features, striving to improve surgical efficiency and patient outcomes.


Product Composition Introduction:

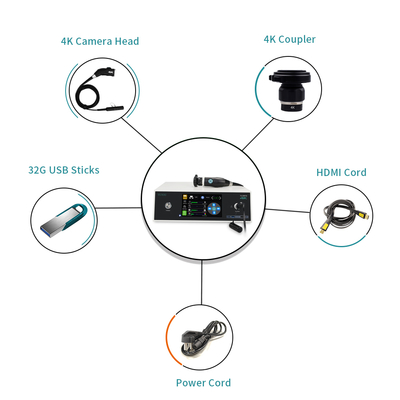

The endoscope light source imaging system consists of a camera control system, a handle camera, a light guide and an optical adapter (optical interface).

  • Self-contained video recording system,  and self-contained display screen;
  • Two built-in USB full HD image storage, 7-inch touch screen display;
  • A variety of output signals, can be connected to an external monitor;
  • One-key freeze, one-key white balance, one-key zoom in and out;
  • With high-definition photo/video function;
  • Brightness memory function, the brightness of the LED light source is not initialized with the shutdown, and automatically memorizes the brightness before shutdown after the startup

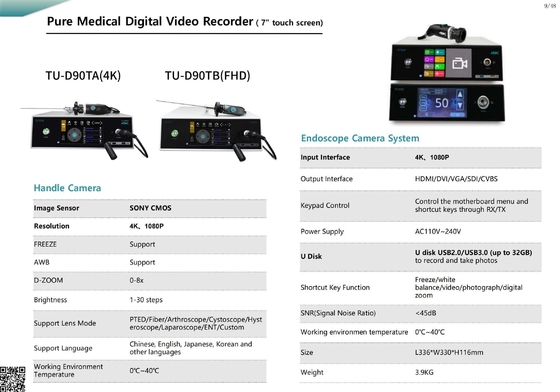

Specification
Certificates FDA/CE/ISO13485
Power Voltage AC110-240V
Camera Sensor Size 1/2.8" SONY CMOS
Video Output Interface HDMI/DVI/VGA/CVBS/SDI
Resolution 1080P 60 FPS
AWB One Key AWB
Freeze One Key Freeze
Application Laparoscopy/Gynecology/Urology/E.N.T Surgery,etc.
SNR More than 42Db(AGC off)
Warranty 2 Years

Packing & Delivery
Company Profile
FAQ

Q: Are you a factory or a trading company?

A: We are a Chinese medical imaging instruments manufacturer. All the products are made of our workers, we have 4 production lines and R&D team.

Q: Where are you ?

A: Our adress is buliding 3,Yunchuang Valley Southern Pacific, Fenghuang District, Shenzhen City, Guangdong Province, China.You are welcomed to visit our factory.

Q: Can you accept OEM?

A: Yes, we offer "TUYOU" brand to you. But if you need, we can also offer OEM service.

Q: What's your deliver time?

A: It will be delivered within 7 working days upon your payment; Samples are ready-made.

Q: What is the warranty?

A: The free warranty is two years. If there is any fault for our products within the free warranty period, we will repair it and change the fault assembly for free.

Q:What's the payment term?

A.We accept payment by T/T Bank Transfer, Alibaba Trade Assurance Service, Western Union, Money Gram, Paypal, L/C, Cash etc.
